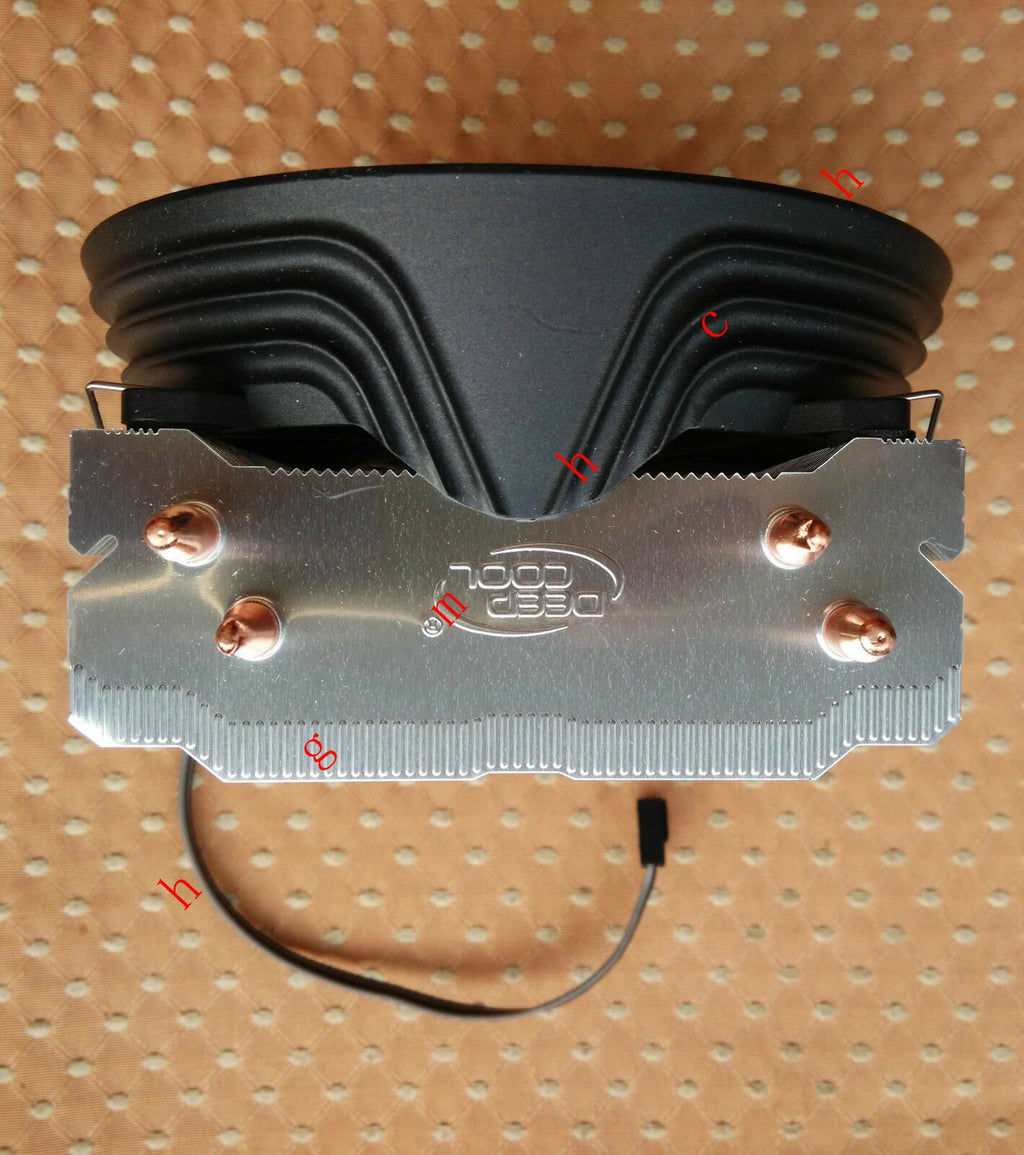

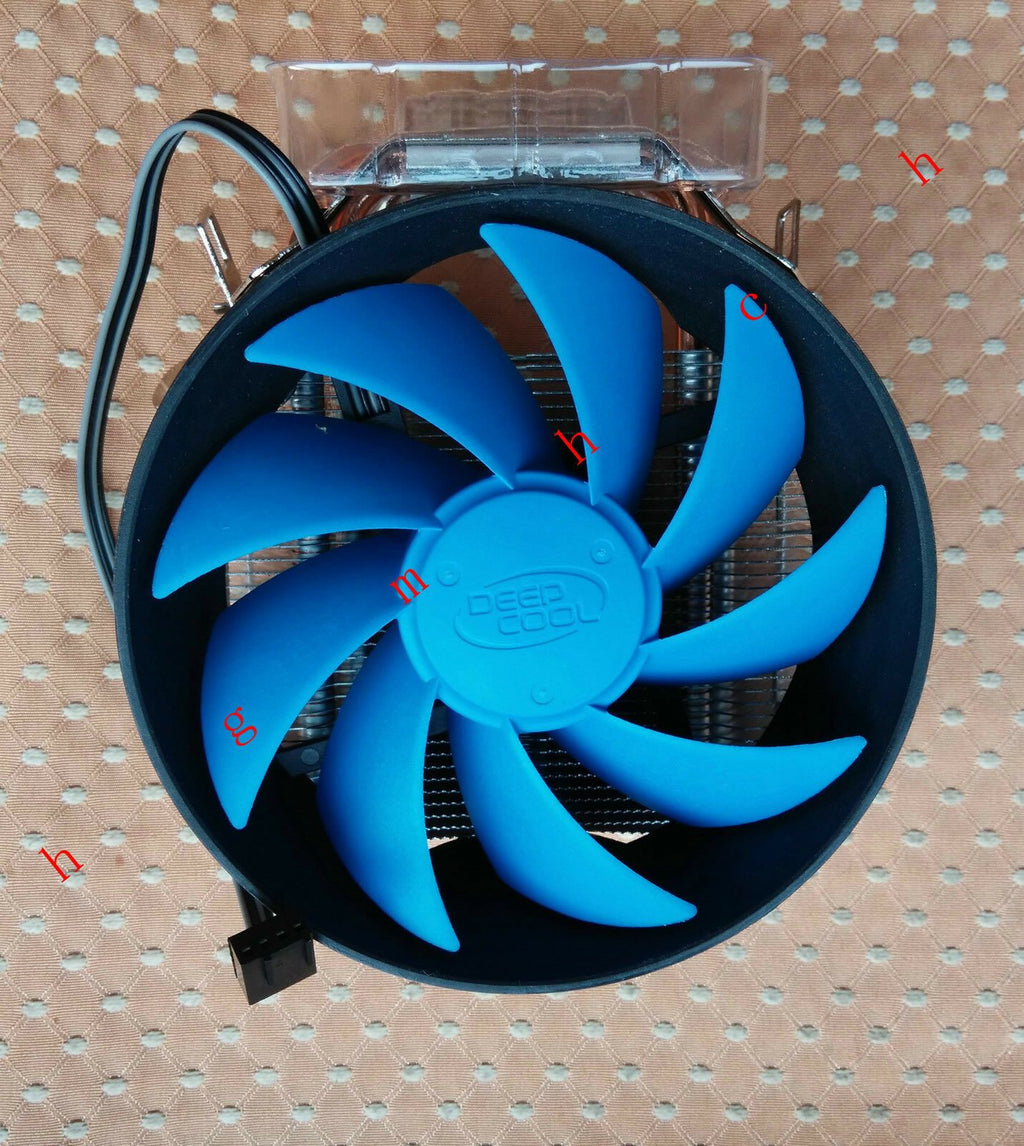

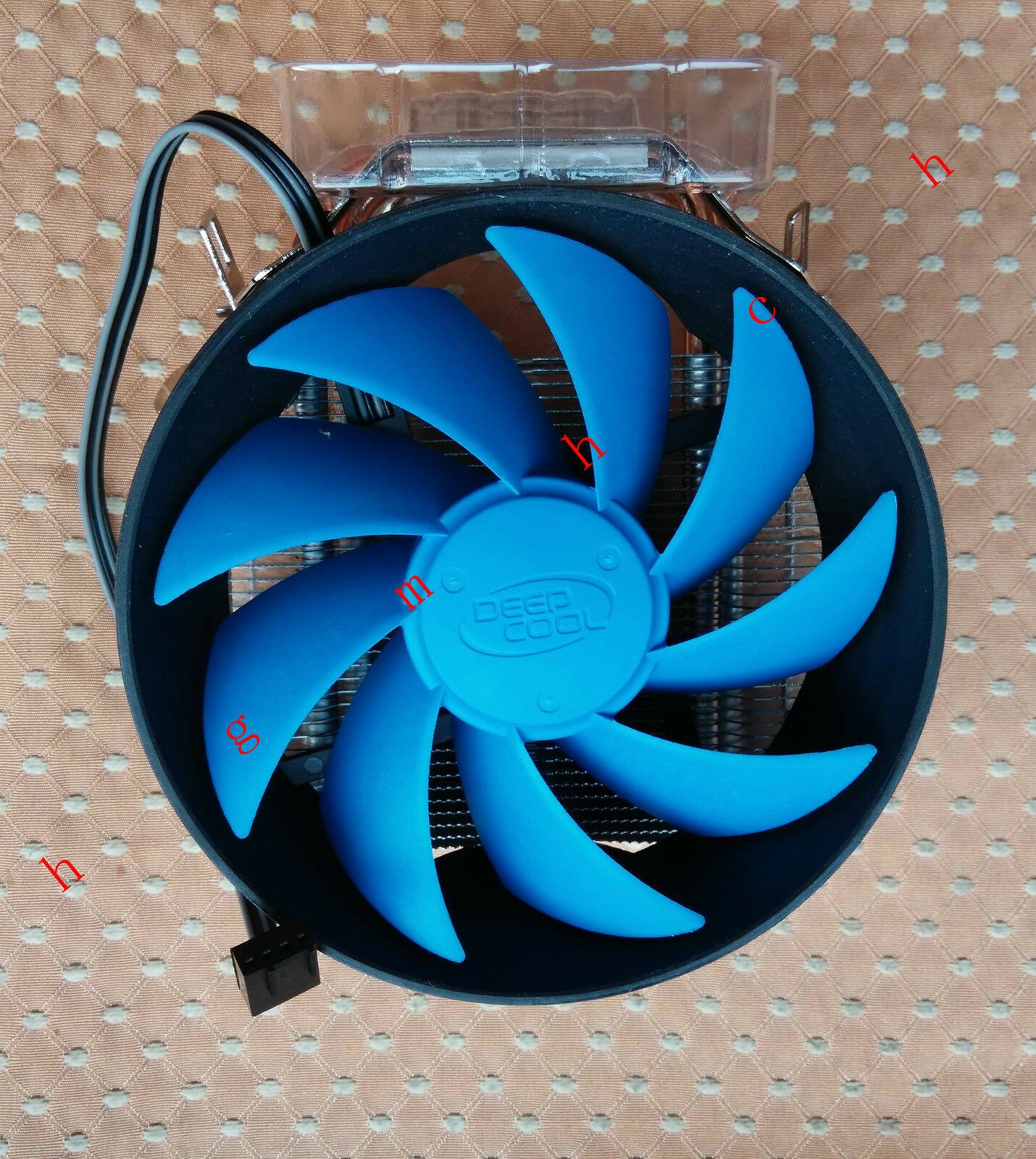

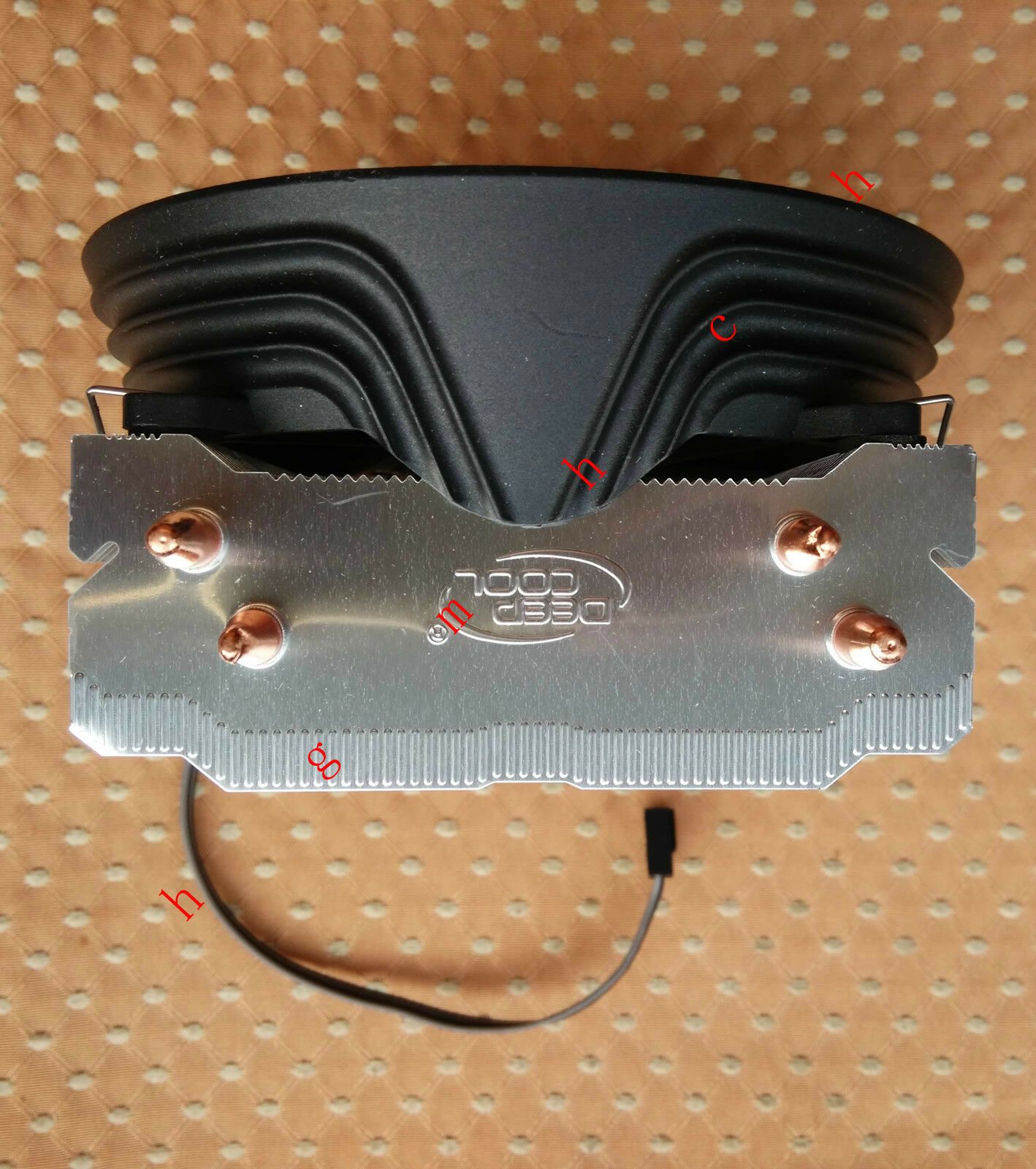

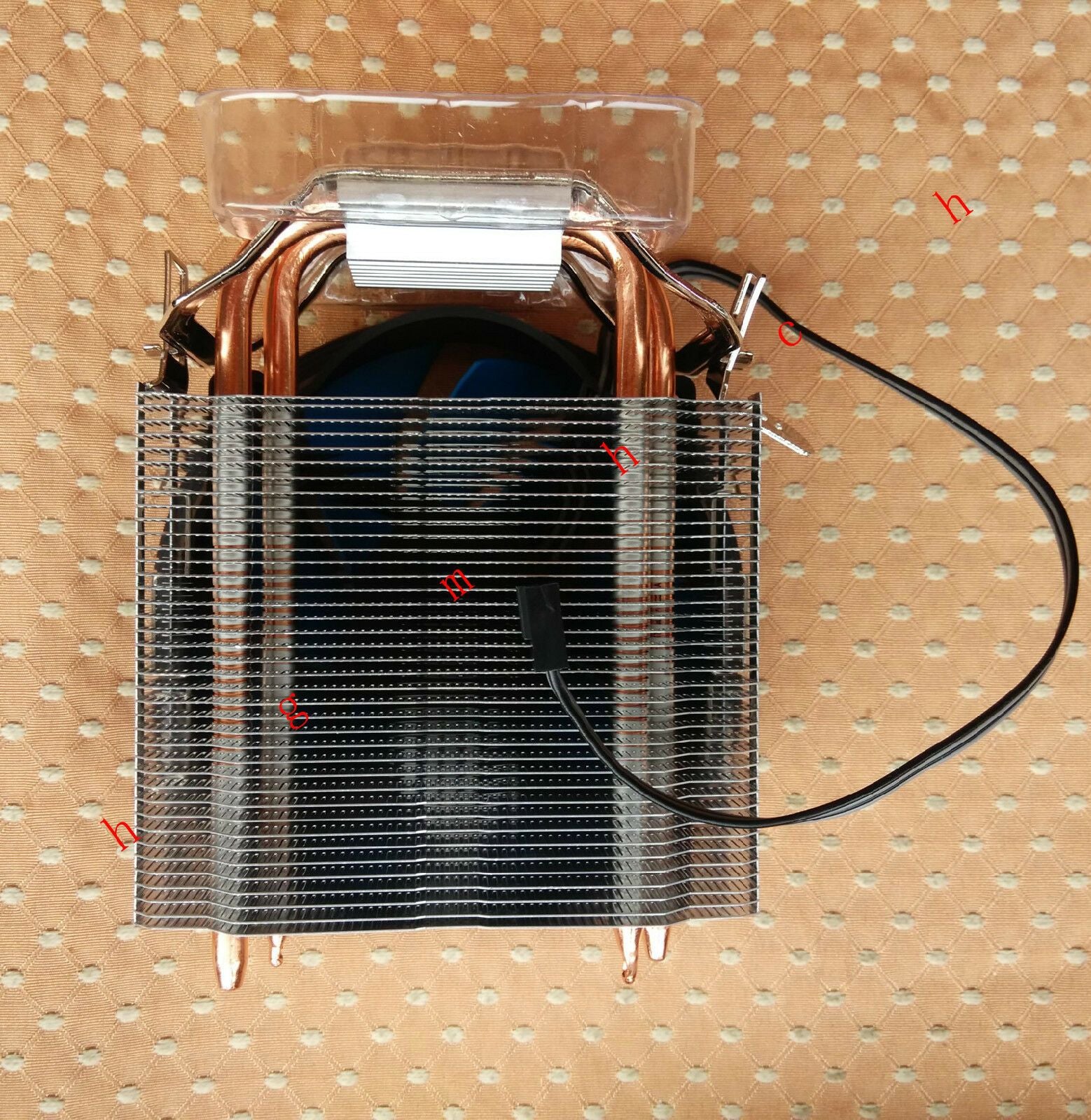

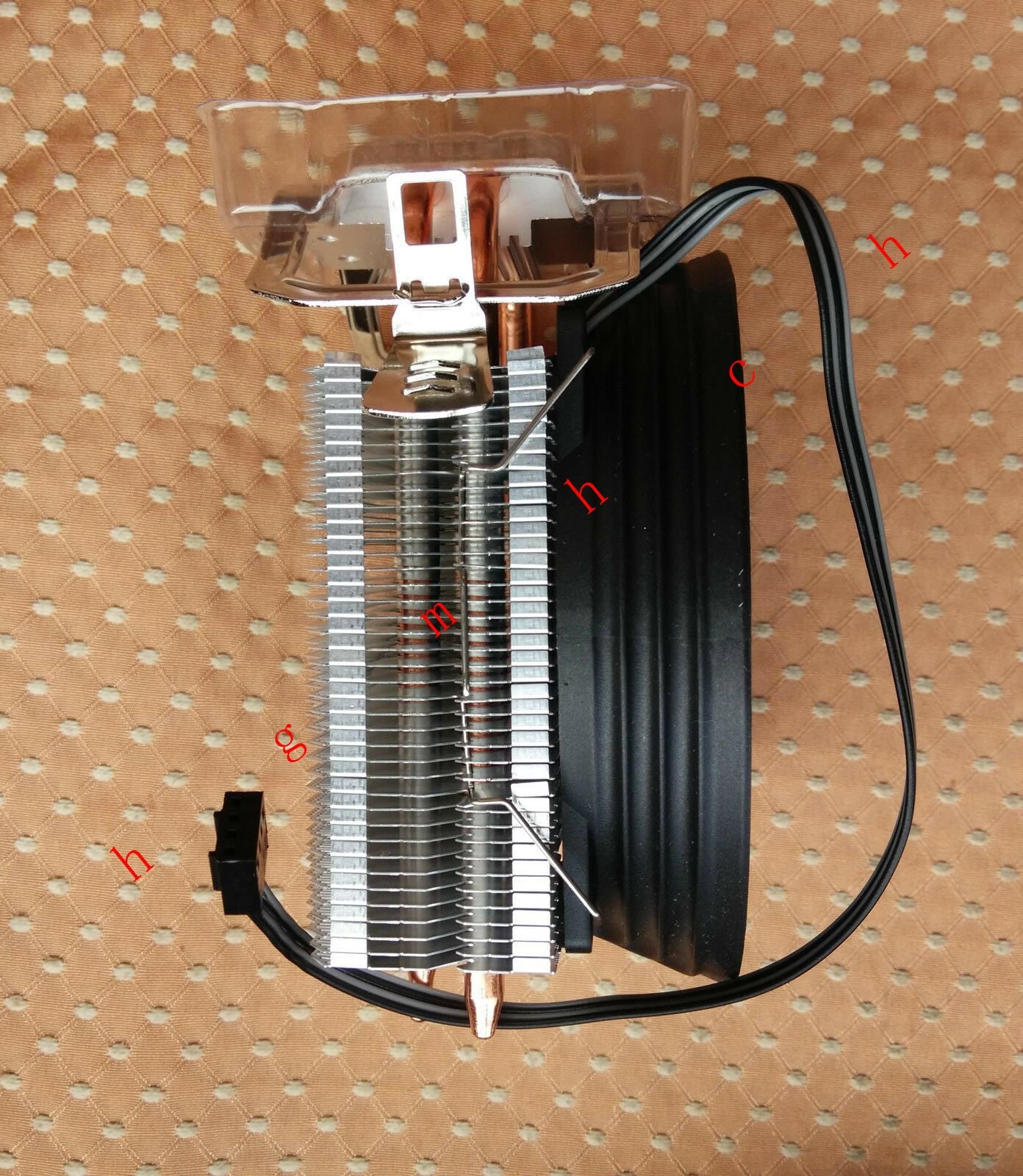

Verified Compatibility: Deepcool 200/GAMMAXX 200T 120mm CPU Cooler for Intel LGA1156/1155/1151/1150/775
Review the technical specifications below before ordering. Need help confirming compatibility? Please contact us with your device model and the part number from your existing adapter.
Technical Specifications
Socket Type:
Intel: LGA115X(1156/ 1155/ 1151/1150)/LGA 775
AMD: Socket FM2+/FM2/FM1/AM3+/AM3/AM2+/AM2
CPU Applications:
Intel: Core i7/ i5/ i3, Core 2 Extreme, Core 2 Quad, Core 2 Duo, Pentium/Pentium G, Celeron/Celeron G
AMD: FX X8/X6/X4, APU A10/A8/A6/A4, Phenom II X6/X4/X3/X2, Phenom X4/X3/X2, Athlon II X4/X3/X2, Athlon X4/X2, Athlon, Business Class, Sempron
Fan:
Speed: 900 ± 150 ~ 1600 RPM ±10%
Air Flow: 54.25 CFM (Max)
Noise Level: 17.8 ~ 26.1 dBA
Voltage: Rated - 12 VDC, Operating - 10.8~13.2 VDC, Started - 7 VDC
Rated Current: 0.13 ± 10% A (Max)
Bearing Type: Hydro Bearing
Power Input: 1.56 W
Dimensions: 120.0 x 25.0 mm

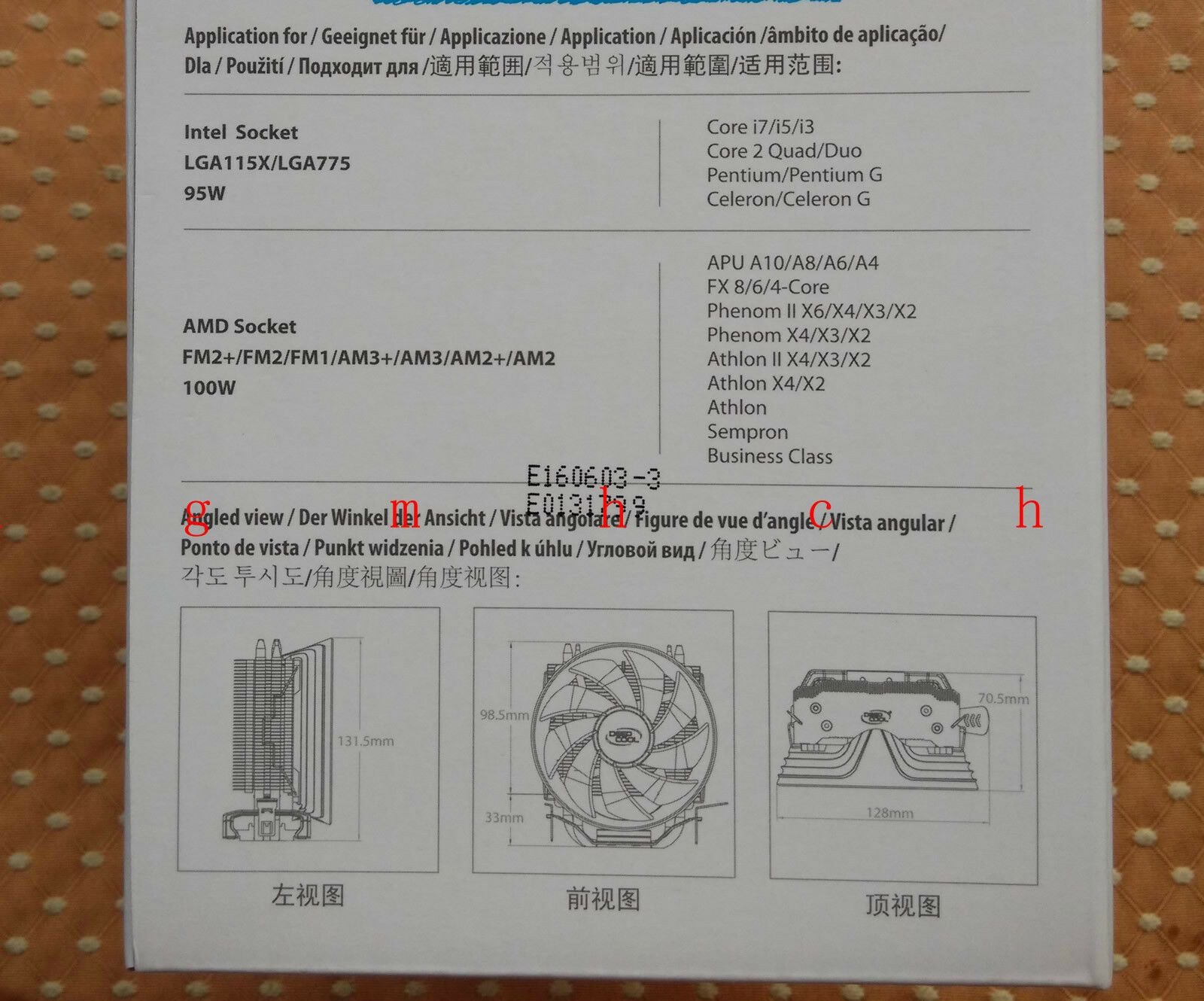

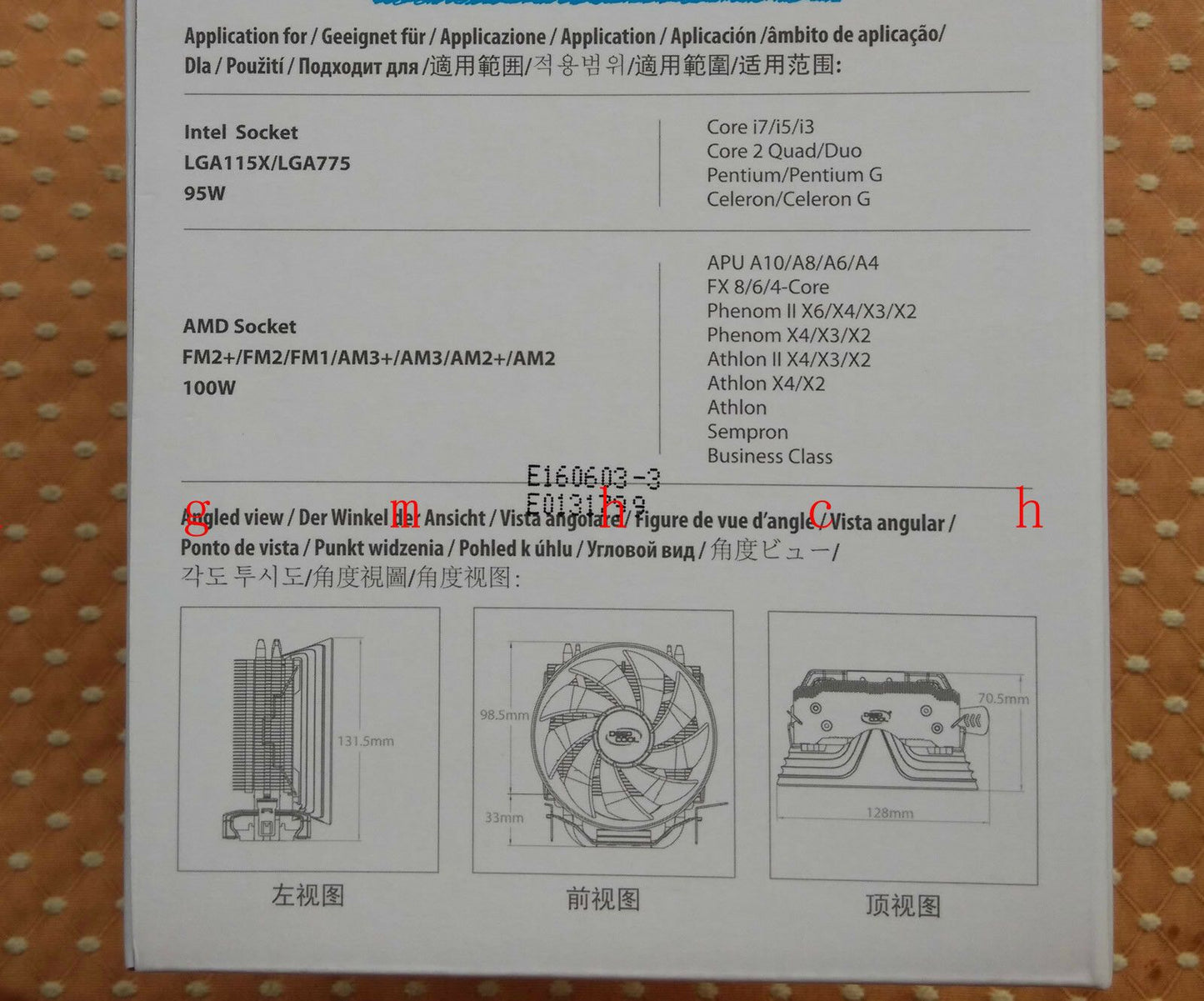

Dimensions: 128.0 x 70.0 x 131.5 mm (Overall)
Weight: 361 g
