Verified Compatibility: New FSP2400-20FM 2400W CRPS 2.0 Redundant Power Supply Module - 80 Plus Platinum - For Data Centers & Workstations
Service & Guarantee: All our parts are 100% original and dispatched within 24 hours to get your device back up and running as quickly as possible. We offer FREE Standard Shipping with end-to-end tracking so you can monitor your package's progress at any time.
Not the right fit? Don't worry—our 30-Day Return Policy ensures a stress-free shopping experience. With an inventory covering 20,000 laptop models, you are guaranteed to find the exact parts your laptop needs.
Technical Specifications
High-Efficiency Power Solution for Enterprise Infrastructure

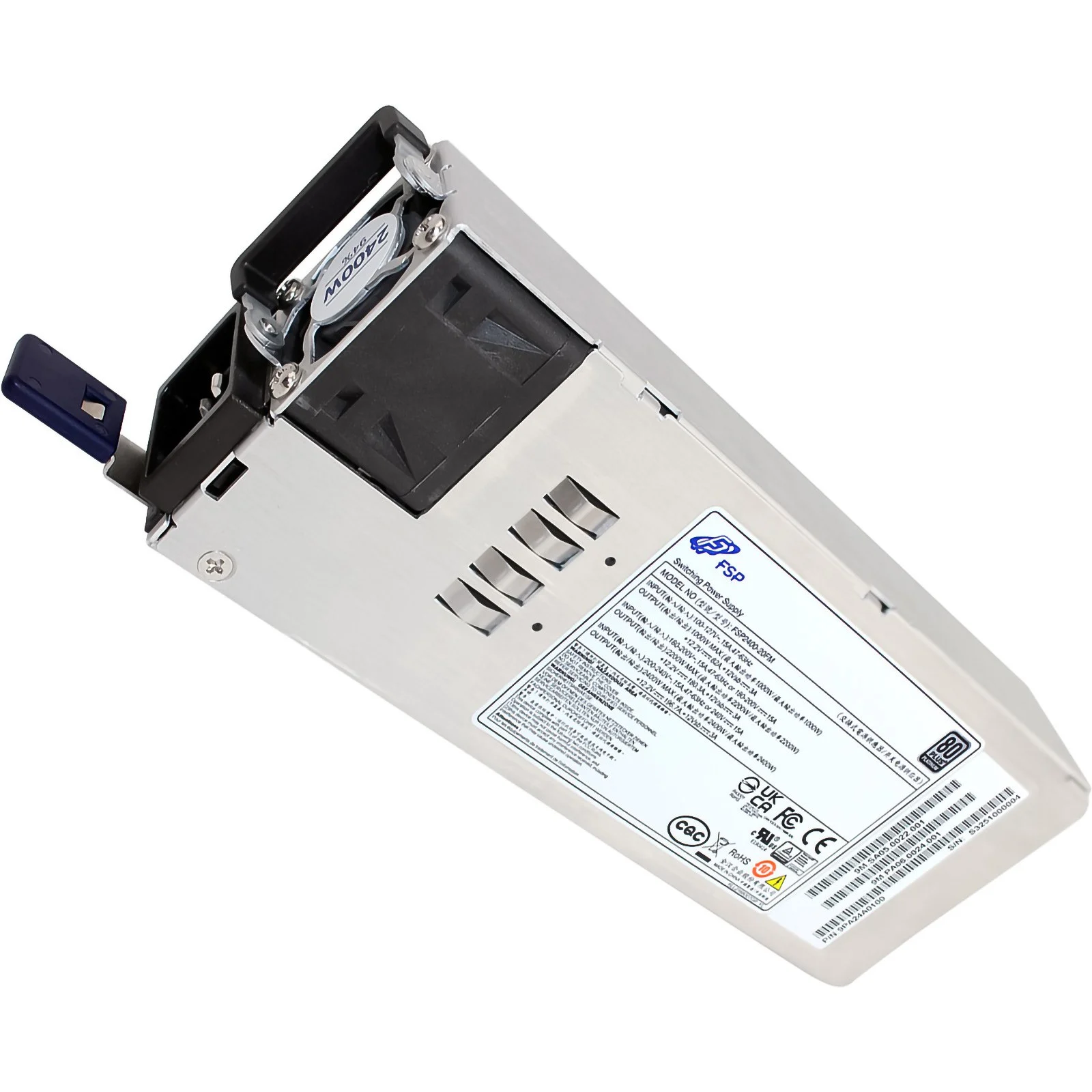

The FSP2400-20FM is a high-performance redundant power supply module built on the CRPS 2.0 (Common Redundant Power Supply) standard. Delivering a massive 2400 Watts of power with an 80 Plus Platinum efficiency rating, this module is engineered for the most demanding environments, including data centers, high-end workstations, and industrial automation.
Key Features:
80 Plus Platinum Certified: Exceptional energy efficiency reduces thermal waste and lowers total cost of ownership (TCO).
Smart Communication: Equipped with PMbus functionality for real-time monitoring and seamless communication with the motherboard.
Industrial-Grade Reliability: Boasts an MTBF of 500,000 hours at 50°C and 100% load, ensuring 24/7 continuous operation.
Extreme Environment Support: Specifically designed to operate at altitudes up to 5,000 meters and within a temperature range of 0°C to 50°C.
Advanced Safety Circuitry: Comprehensive protection including OCP (Over Current), OTP (Over Temperature), OVP (Over Voltage), and short circuit protection on all outputs.
### 3. Specifications Table Feature Details
Brand FSP (Fortron Source)
Model FSP2400-20FM
Max Output 2400W
Efficiency 80 Plus Platinum
Standard CRPS 2.0
Communication PMbus Supported
Operating Temp 0 to 50°C

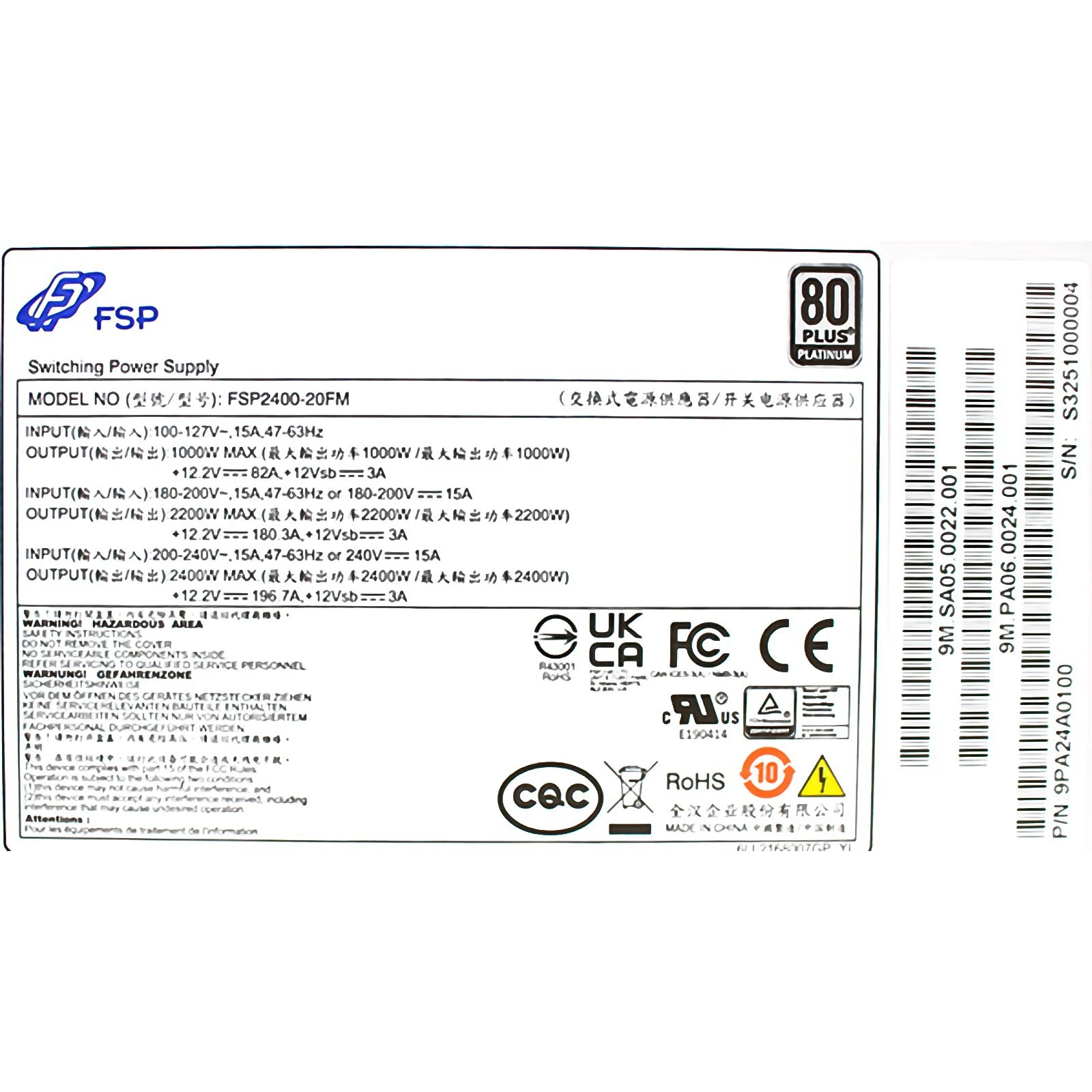

Compliance UL/cUL, CE, FCC, CB, TUV, BSMI, CQC, KC, BIS, UKCA
Frequently Asked Questions (FAQ)
Q: Is the FSP2400-20FM hot-swappable? A: Yes, it is designed as a hot-swappable redundant module under the CRPS 2.0 standard, allowing for maintenance without system downtime.
Q: Does this unit support 240V input? A: Absolutely. To achieve the full 2400W output, a high-line input (200V-240V) is required.
Q: Can I monitor power usage remotely? A: Yes, the module supports PMBus 1.2, providing real-time data on voltage, current, and temperature to the system motherboard.
